RJ type hood in my Snaidero kitchens

This morning I had a question about the RJ type hood I usually sell. I have this question more often, so it is more convenient to explain it on my blog for the English clients (this client came from Surrey).

The hood itself is a built-in type hood with width 90cm. The hood is made from white glass. This is easier to clean compared to stainless steel. The engine of this hood has 3 speed levels and a power function. There is also fluorescent lighting and an indicator for the grease filter.


I usually send the hood to my clients by post in advance. Good thing I can open the hood of my car, because it`s a rather big box :).

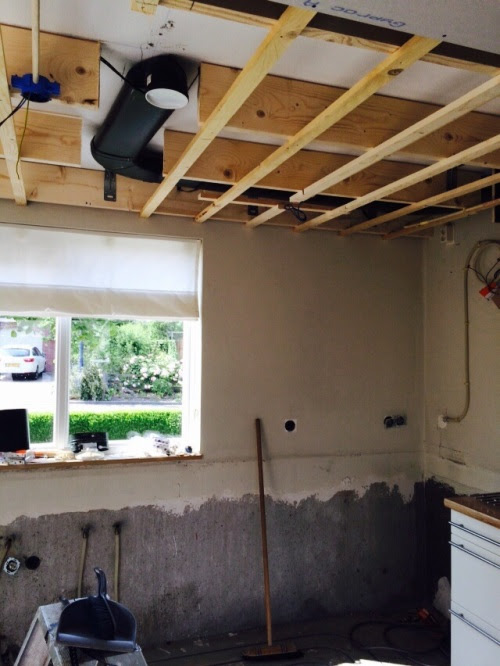

But this way the constructor of a client is able to built in the hood in the ceiling in a proper way. The hood below is delivered in Manchester already (Snaidero project 709).


I sell this hood with two extra kits. One of these kits is for the remote control.

The other kit you need to remove the engine from the hood and to install it on distance. I do this to reduce the noise of the hood, but also to lower the height of the lowered ceiling.


Usually we install the engine (size approx. 30x30cm) above the tall units. But of course, it is possible to install the engine also further away from the kitchen. Like in the garage.


I know the engine seldom gives problems, but it might be handy to install the engine in a way you can access it in case of a service.

On the video below you can see a S100 kitchen with this RJ type hood.



Finally the technical data below:

Width: 90 cm
Dimensions (WxDxH): 860x301x359 mm
Cut-out: 845x286 mm
Recirculation: Optional
Maximum flow: 785 m³/h
flow/pressure - speed level 1: 191 m³/h / ... Pa
Flow/pressure - Speed level 2: 281 m³/h / ... Pa
Flow / pressure - Speed level 3: 456 m³/h / ... Pa
flow/pressure - Power speed level: 629 m³/h / 547 Pa
Sound level 1(soundcapacity/acoustic pressure): 39 dB(A) re 1 pW / 29 dB(A)
Sound level 2 (soundcapacity/acoustic pressure): 47 dB(A) re 1 pW / 37 dB(A)
Sound level 3 (soundcapacity/acoustic pressure): 58 dB(A) re 1 pW / 48 dB(A)
Sound level Power (soundcapacity/acoustic pressure): 53 dB(A) re 1 pW / 52 dB(A)
Number of speed levels: 3+Power
Diameter exhaust: 150 mm
Type of lamps: 2 x TL8
Type of control: Electronical
Type of command: Touch Control
Number of metal grease filters: 1
Total max. consumption: 267 W
Energy efficiency index (class): C
Annual energy consumption (kWh/year): 99
Fluid Dynamic Efficiency (class): B
Light efficiency (class): E
Grease filter efficiency (class): C
Consumption in stand-by mode Ps (W): 0,3
